C&D just purchased Amada’s newest press brake metal forming machine, the Amada HD 1310NT press brake. This amazing machine is delivered and running in our Northglenn shop.
Safety and speed are the two priorities for sheet metal press brake machines, and Amada pulled out all the stop on this one. This buy enhances our sheet metal deep-bend capabilities, which are some of the most difficult and expensive forming projects. We can now bend and form large metal sheets into complex shapes.

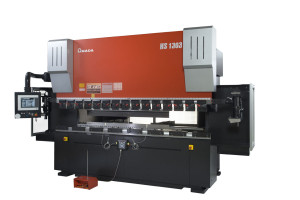

Amada HD 1303 NT
|
HD 1303 NT – Press Brake |
|
| Tonnage (US) | 88 |
| Maximum Bend Length | 122 inches |
| Distance Between Frames (A) | 106.3 inches |
| Stroke Length | 7.87 inches |
| Open Height w/Holders | 11.75 inches |
| Open Height | 18.5 inches |
| Throat Depth | 16.50 inches |
| Table Height | 38.6 inches |
| Approach Speed | 4.72 inches/second |
| Bending Speed | 0.39 inches/second |
| Return Speed | 4.72 inches/second |
| Oil Capacity | 13 gallons |
| Machine Length (B) | 187 inches |
| Machine Width (C) | 108 inches |
| Machine Height (D) | 114 inches |
| Approximate Weight | 15,600 lbs |
| Motor Power | 7.8 HP |
| Backgauge Range | 27.5 inches |
| Backgauge Vertical Range | 9.84 inches |
| Control Type | Amada AMNC-PC |
| Program Capacity | Unlimited via network |
| Axis Under CNC Control | 7 |
| RAM | D1 & D2 |
| Backgauge | L1 & L2 |
| Backgauge Horizontal | Y1 & Y2 |
| Backgauge Vertical | Z |
| Ram Repeatability | + 0.00004 inches |
| Backgauge Speed (L-axis) | 1,181 inches/min |
| Backgauge Speed (Y-axis) | 2,362 inches/min |
| Backgauge Speed (Z-axis) | 393 inches/min |
